Rod Benjes and John Dillon's new Mustang

18 May, 2022

Rod Benjes and John Dillon's new Mustang's diff is coming together nicely with just a few little bits to finish. The core is a Tim Mcamis bare housing along with a set of his brackets and doubler plates, complemented with a Strange Engineering 40 spline floater kit with Carbon brakes. Then we've added all the usual bracing required to survive the beating it'll get! It'll be topped off with a Strange Ultra case with 10" gear set and Bickle drive shaft loop bolted to the front.

Rear end is now in position, with the addition of a Strange Engineering 40 spline floater kit with carbon brakes

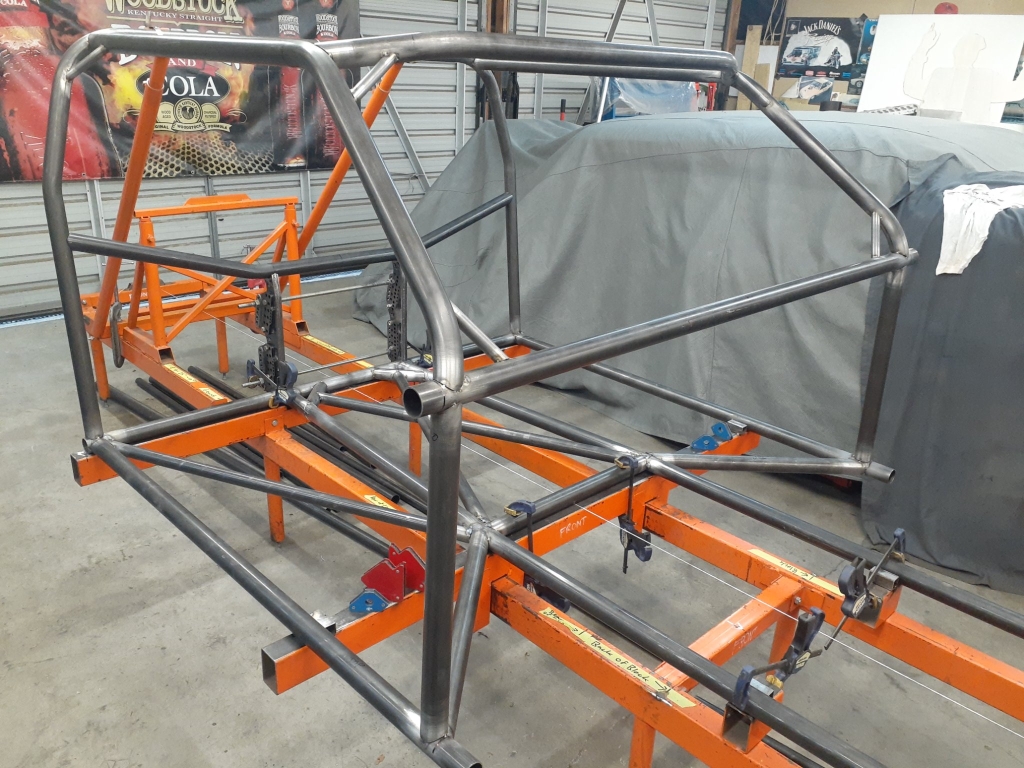

The cage is the starting point before more and more tubing is added to it.

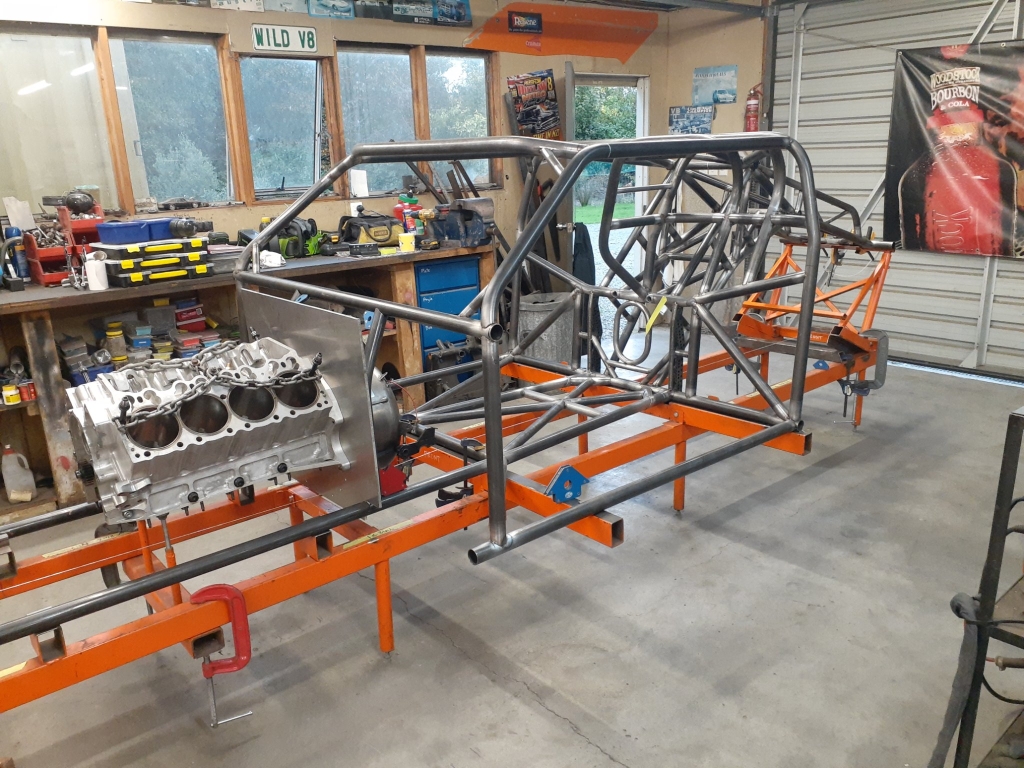

Rear end tubing has been added and the engine placed in position.

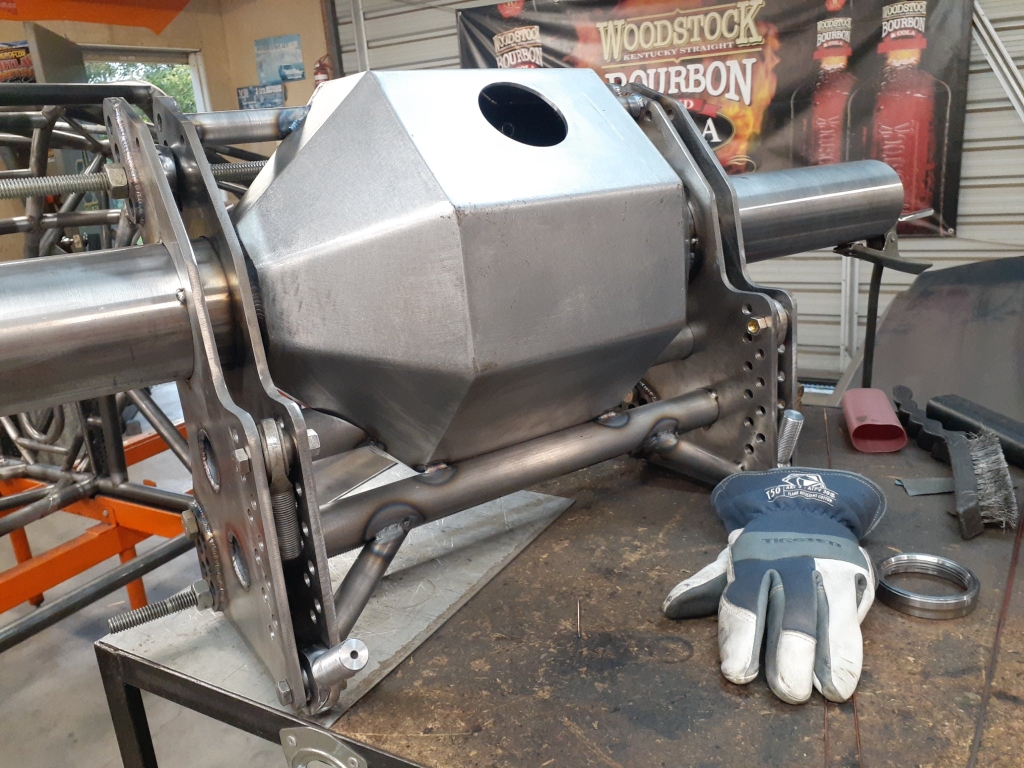

Mustang diff is a Tim Mcamis bare housing, along with a set of his brackets and doubler plates.

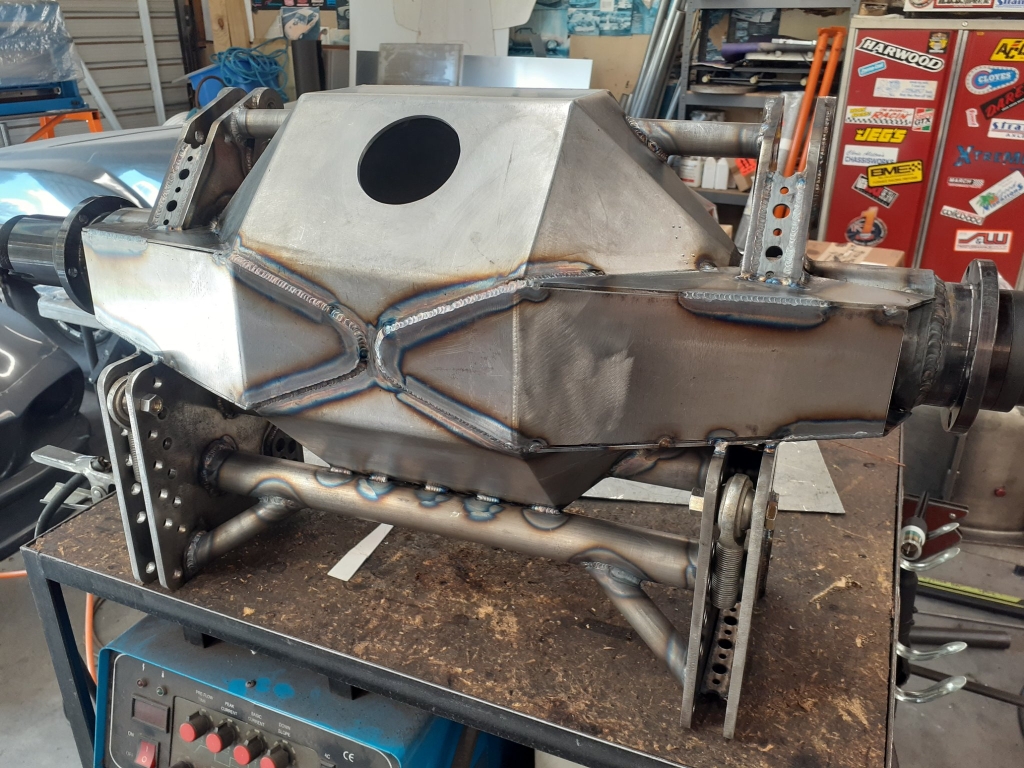

The Tim Mcamis bare housing has had all the usual bracing added to survive the beating it'll get!
Rear end is now in position, with the addition of a Strange Engineering 40 spline floater kit with carbon brakes.
