Graham Carter: 1977 Jaguar XJS

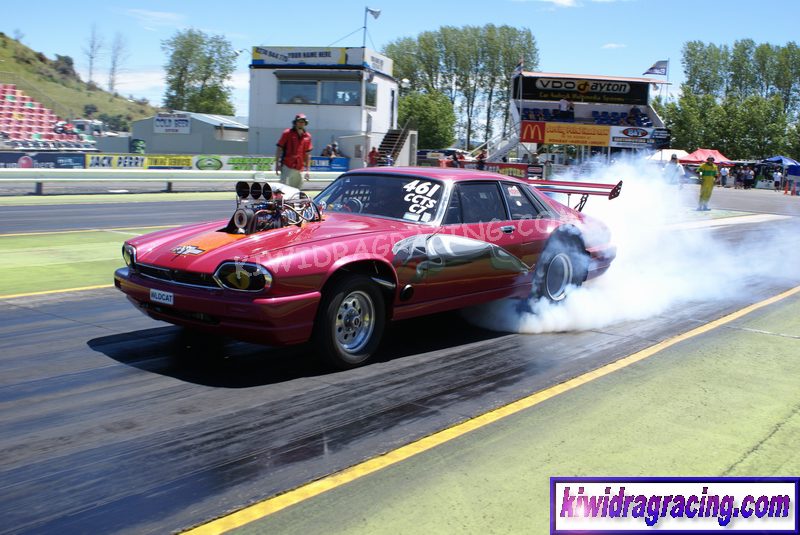

[Photo by kiwidragracing.com]
Graham started racing his Jaguar XJS over 12 years ago. It started life as a 15 second street car and has slowly transformed itself over the last 10 years into its current state. Wildcat is still a street car at heart, it still has its rego on hold and is probably the heaviest car in the field at almost 1500kg. Best ET is 8.02 @171.6mph (approx 2006). It was upgraded to alloy heads and a 10/71 3 years ago but has never got close to those times since due to lack of track time and mechanical problems. All work is done by Graham and his small but dedicated team of John, John, and wife Robyn. (I don’t think I have ever won a meeting so the attraction is definitely the challenge and not the need to win !)
Class | CC/TS |
Body | 1977 Jaguar XJS. Steel by Jaguar. Fibreglass front and doors. Kevlar boot. |
Engine | 532 cubic inch B/B Chev. Dart 360 Heads |
Supercharger | SSI HH 10-71 retro supercharger |
Fuel Injection | Enderle |
Ignition | MSD 10+ |
Torque Converter | TCE CK 3500 |
Gearbox | Turbo 400 |
Differential | 9" Ford. 3.77 gears |
Front Suspension | Jaguar XJS. Koni shocks |
Rear Suspension | 4 link |
Chassis | Mild Steel tube rear with original front chassis |
Wheels | Front 15 x 4 Centerline. Rear 16 x 14 Centerline |
Tyres | Mickey Thompson 265 x 15. Goodyear 33 x 16.5 x 15 |
Brakes | Front: Jaguar XJS. Rear: Commodore |
Paint | No idea as it was done so long ago |
Major Sponsor | Marsh Motorsports for engine machining, Detroit Auto’s for trans. NO other sponsorship (Help!) |
Best times | 7.985 secs. 171.6 mph |
